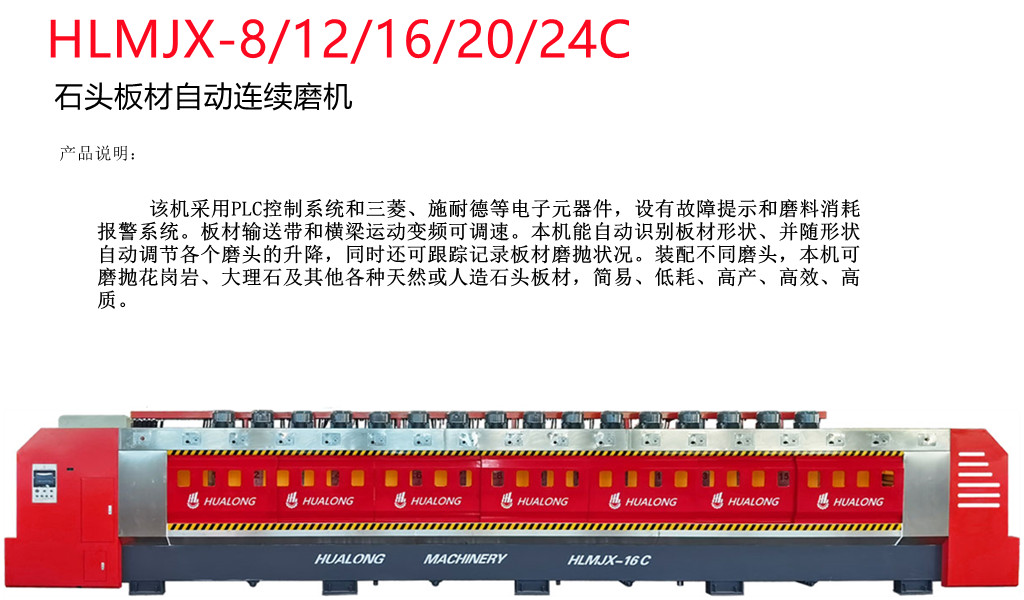

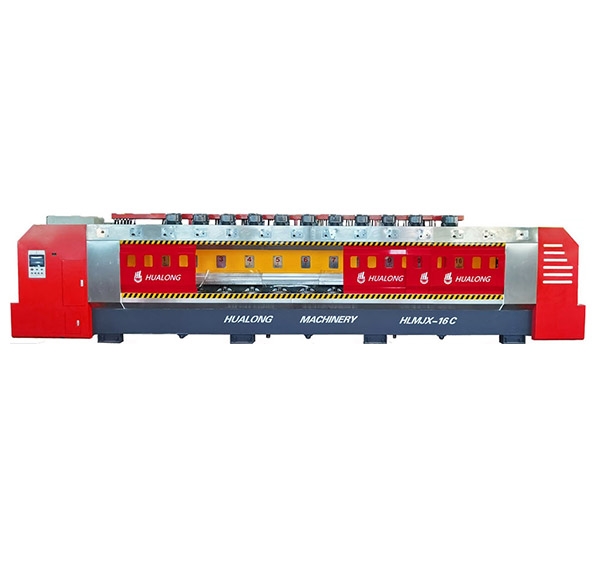

HLMJX-16 型主动石材板材持续抛光机,装备多个树脂盘头和 PLC 节制体系,可以或许持续主动地对板材停止研磨和抛光,是花岗岩等硬质石材外表处置的抱负挑选。装置差别范例的头,它也很是合适大理石、石英岩和其余石材板材的加工。

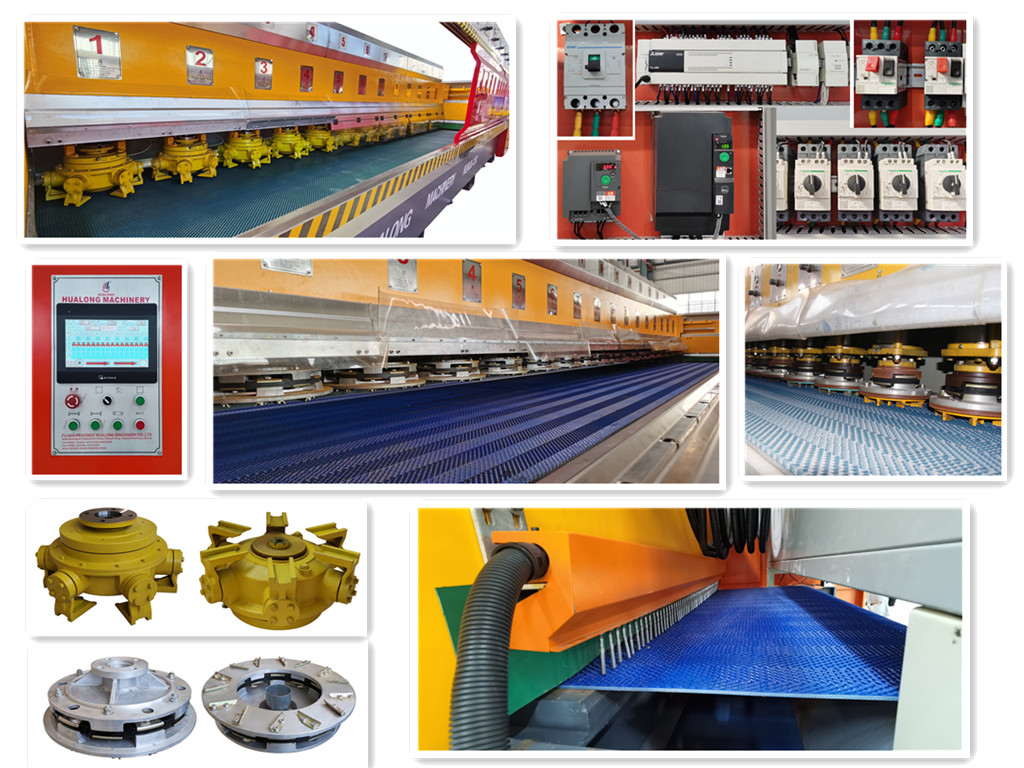

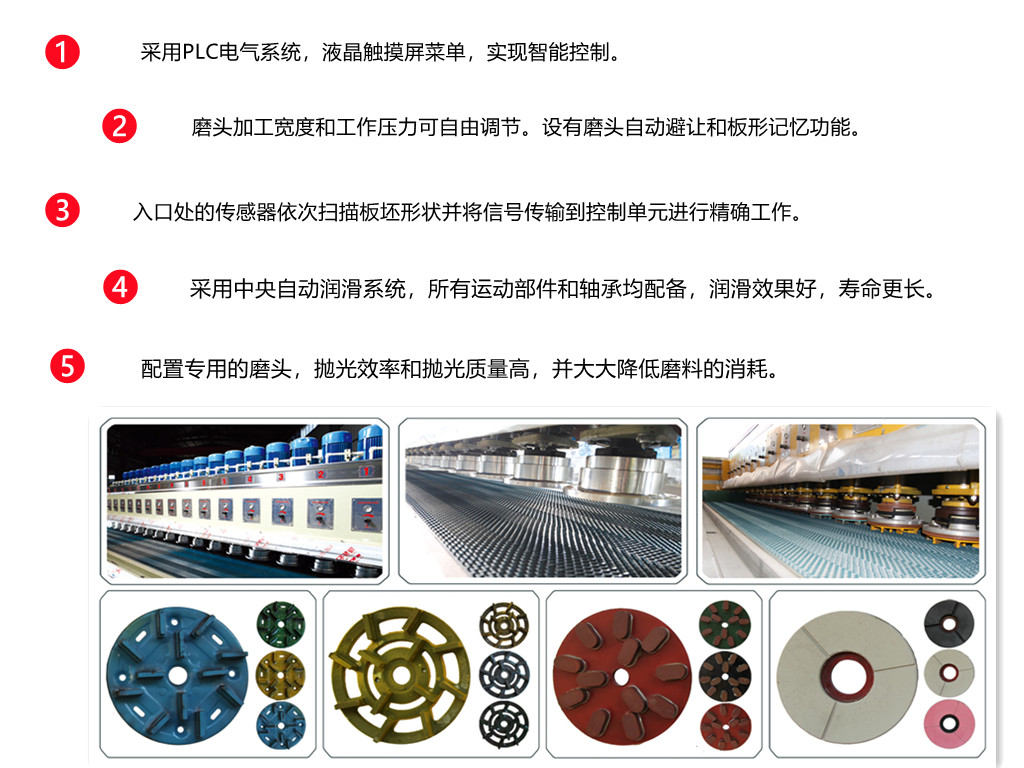

首要特色
1)接纳 PLC 电气体系和 LCD 屏幕菜单完成智能节制。
2) 抛光轮的加工宽度和任务压力可自在调理。
3)进口处的传感器顺次扫描板坯的形状,并将旌旗灯号传输给节制单元以完成切确功课。
4)接纳中间主动光滑体系,使一切活动部件和轴承都能取得杰出的光滑结果,耽误利用寿命。
5)保送带自洁净及石屑断根体系
Automatic Stone Line Polishing Machine
Main FeaturesHLMJX-16,equipped with multiple resin disc heads and PLC control system, can grind and plolish slabs continously and automatically, is perfect for surface finishing of hard stone such as granite. Mounted with different type of heads, it’s also great for marble, quartize and other stone slab finishing.1) Using PLC electrical system and LCD screen menu offer intelligent control. 2) Processing width and working pressure of grinding heads can be adjusted freely . 3) Sensor at the entrance to scan the shape of the slabs in sequence and transmit the signal to controlling unit for precise working 4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life. 5) Conveyor self-cleaning and stone chip removing system
| 称号 | 单元 | HLMJX-8 |
HLMJX-12 |
HLMJX-16 |
HLMJX-20 |
HLMJX-24 |
HLMJX-12C |
HLMJX-16C |
HLMJX-20C |
| 磨头数 | Nº | 8 | 12 | 16 | 20 | 24 | 12 | 16 | 20 |
| 可磨板材宽度 | mm | 300-1300 |
300-1300 |
300-1300 |
300-1300 |
300-1300 |
400-1300 |
400-1300 |
400-1300 |
| 可磨板材厚度 | mm | 10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-80 |
10-80 |
10-80 |
| 皮带进给速率 | mm/min | 0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3800 |
0-3800 |
0-3800 |
| 磨头总功率 | kw | 7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
15 | 15 | 15 |
| 总最大功率 | kw | 75 | 105 | 135 | 165 | 195 | 201 | 261 | 321 |
| 耗水量 |
m³/h |
15 | 17 | 20 | 23 | 25 | 20 | 25 | 30 |
| 形状尺寸 | mm | 5600x2200x2300 | 6800x2200x2300 | 8000x2200x2300 | 9200x2200x2300 | 10400x2200x2300 | 9700x2200x2650 | 11800x2200x2650 | 1400x2200x2650 |
| 零件分量 | kg | 10000 | 12000 | 14000 | 16000 | 1800 | 21000 | 25000 | 32000 |
