液压式单臂多片锯 HLDQ-1600 合用于切割石块,如花岗岩、大理石等。
首要特色
(1)接纳全密封的四缸导向轨停止起落操纵,这使得全部布局加倍安定,削减了磨损,并能永劫间坚持机器处于最好任务状况。
(2) 电动主动切片分手手艺进步了产物的精度,下降了休息强度,并进步了出产效力。

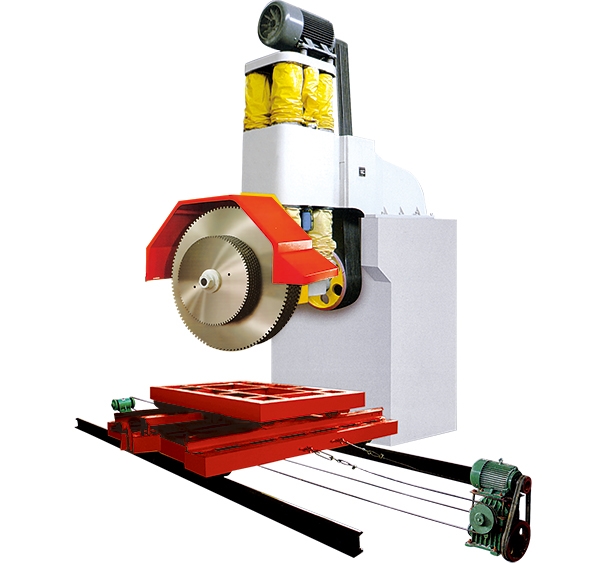

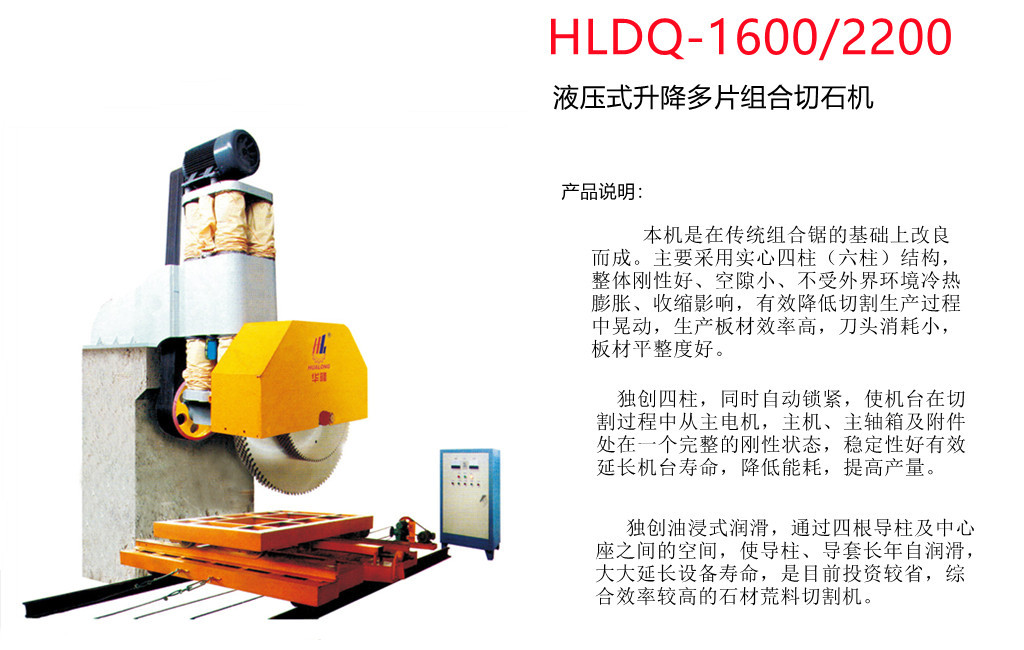

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600🐻 is suitable for cutting stone blocks, such as granite, marble.
Main Features
1) Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.
2) Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.
接洽咱们,获得完全计划!
Contact us to obtain the complete solution!
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆仪器,机械五轴手工手工加工工艺中心桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,花岗石切机,花岗石手工手工加工工艺场紫装,花岗石cnc精密机械手工手工加工机,花岗石cnc精密机械手工手工加工紫装,花岗石手工手工加工工艺里面商,明面手工手工加工工艺里面商,水刀,水刀打磨机,采矿场开采企业企业勘探紫装,采矿场开采企业企业园盘锯,园盘双刀锯,采矿场开采企业企业机,采矿场开采企业企业锯。
| 称号 | Name | 单元/Unit | HLDQ-1600/6 |
HLDQ-1600/10 |
HLDQ-1600/16 |
HLDQ-1600/12 |
| 锯片直径 |
Btade diameter |
mm |
Φ1600,Φ940 |
Φ1600,Φ940 |
Φ1600,Φ940 |
Φ1200 |
| 锯片数目 |
Number of blades |
pc |
6(3-Φ1600,3-Φ940) |
6(3-Φ1600,3-Φ940) |
6(3-Φ1600,3-Φ940) |
12(Φ1200) |
| 起落路程 |
Blade lifting stroke |
mm |
1000 | 1000 |
1000 |
1000 |
| 最大切割尺寸 | Max.cutting size |
mm |
3500x1300x950 | 3500x1300x960 | 3500x1300x950 | 3500x1300x950 |
| 路程机电功率 | Power of stroke motor |
kw |
2.2 | 2.2 | 2.2 | 2.2 |
| 起落机电功率 | Power of lifting motor |
kw |
22.2 | 2.2 | 2.2 | 2.2 |
| 主机电功率 |
Power of main motor |
kw |
37 | 45 | 55 | 55 |
|
耗水量 |
Water consumption | L/min | 37 | 42 | 42 | 42 |
|
总功率 |
Gross power | kw | 41.4 | 49.4 | 59.4 | 59.4 |
|
形状尺寸 |
Dimensions(L x W x H) | mm | 8500x4000x5500 | 8500x4000x5500 | 8500x4000x5500 | 8500x4000x5500 |
| 零件分量 | Gross weight | kg | 6000 | 7800 | 8500 | 8500 |
