5 Axis Stone数控锯木机HKNC-450J
接纳意大利顶级数控节制体系ESA，是一台全主动两用机床，由5轴数控锯和5轴数控喷水机组合而成，用于切割花岗岩、大理石、石英石、石灰石和新兴陶瓷资料。
数控锯用于切割石板，台面和水槽，刀片外表，雕镂等。
水射流切割头是完善的斜切和经由过程差别的资料切割成紧密庞杂的外形和角度，是切割陶瓷，石材，大理石和花岗岩镶嵌图案的抱负挑选。


首要特色
5轴锯-这台机器是一个全插补的5轴桥锯
*主动头部扭转从0°到360°与主动叶片倾斜从0°到90°相连系，使其合适大范围出产运转，同时包罗本钱。
*可实现差别庞杂曲面的加工，集切削、钻孔、铣削、雕镂等功效于一体
变成一个无机全体。


5轴水射流-这台机器是一个完整插值的5轴水射流
*主动头部扭转从0°到360°连系主动磨料切割头倾斜从0°到60°切确
斜切边的内角加工。
* KMT-H20 JET50超压泵装备西门子PLC和机电。


1)五轴联动节制，接纳意大利数控Esa体系。
2) 19寸黑色触摸屏，操纵简洁。
3) Y轴由龙门体系挪动，保障了桥架的完善方形
4)接纳最早进的直线滚珠导轨传动，由伺服机电经由过程高精度斜齿轮和齿条驱动，保障了活动的相对精度。
5)数控锯木机和桥锯能够疾速实现简略的手工切割，机器也能够导入和操纵DXF （AutoCAD）文件
6)任务平台可倾斜85度，便于装板。
7)拍照板嵌套，防止缺点。
8)手动/主动套料，优化板坯外表操纵率
9) RTCP刀点跟踪功效，确保加工精度。
10)能选-门冠状动脉配婚很贸然配婚更加完善的每个人个门冠状动脉，的色彩在你的类别拼缝。

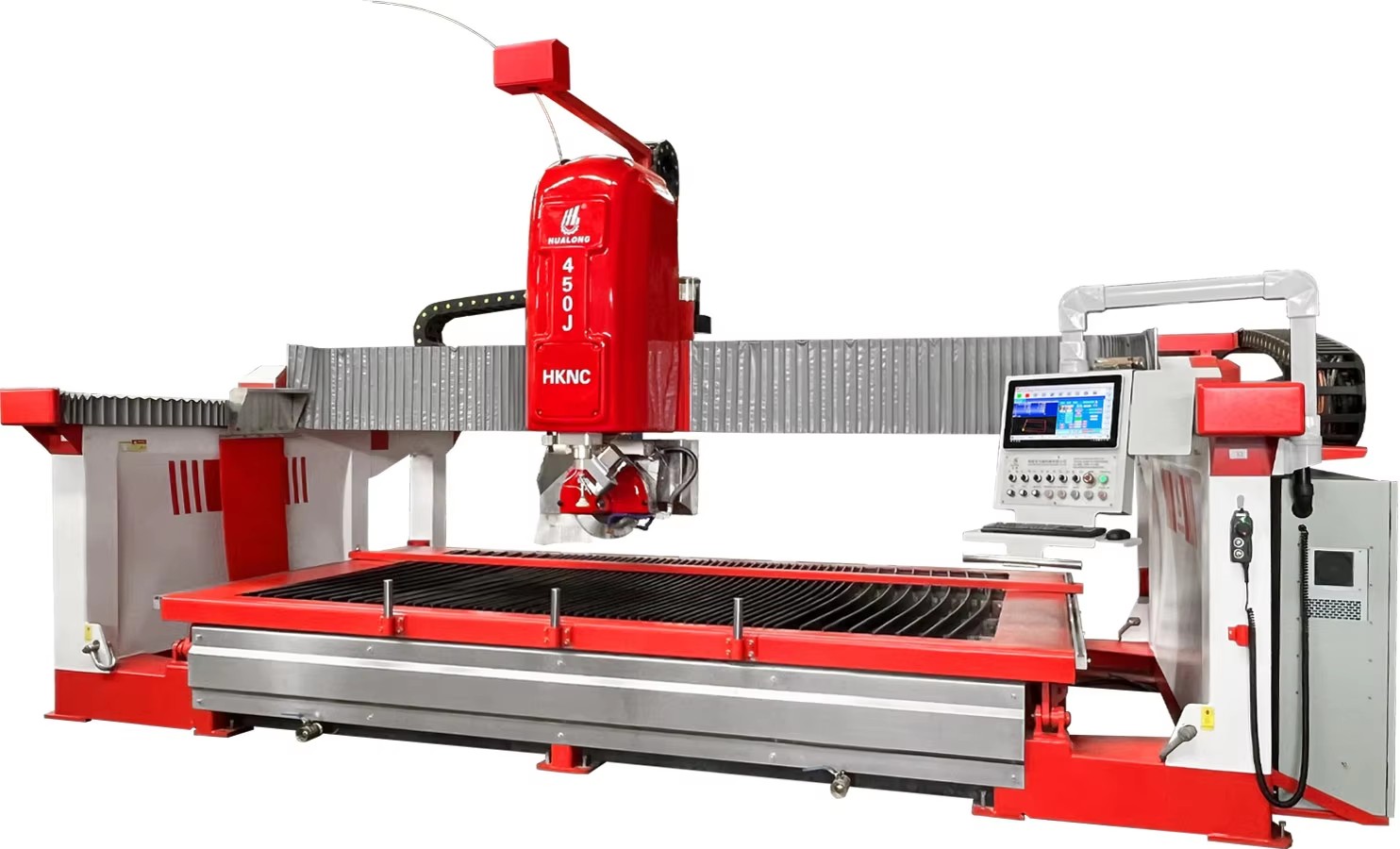

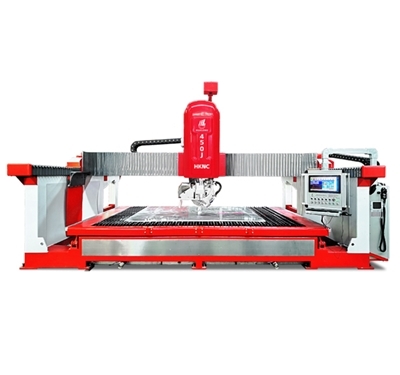

5 Axis Stone CNC Sawjet HKNC-450J
with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.
CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.

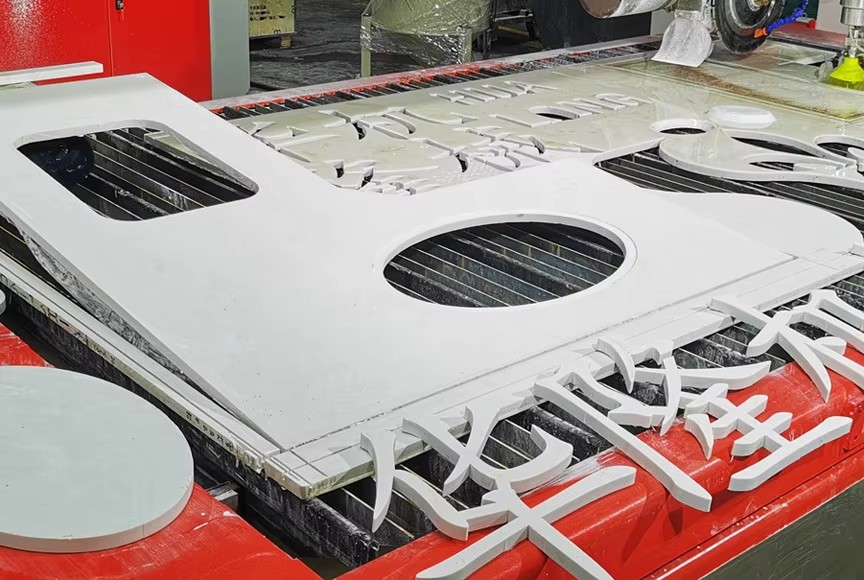

The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.


Main Features

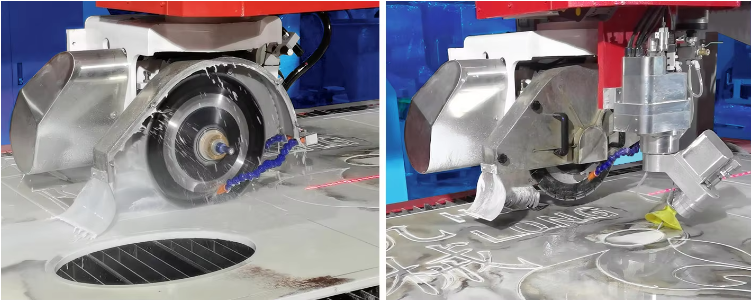

5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.


5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.


1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.

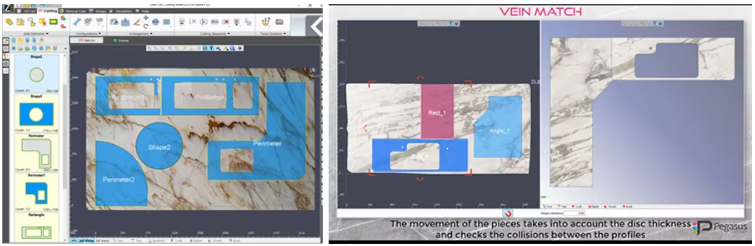

7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
