HKNC-500 CNC Stone MachineHKNC-500 数控石材桥锯

领跑智能制作新“石”代

HKNC-500 CNC Stone MachineHKNC-500 数控石材桥锯

隶属于国产品牌: 隶属于种别:副产物库

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

CNC石材加工机
HKNC-500+ 具备 5 轴插补节制功效,是一款专为车✱间需要设想的多功效数控石材切割、成型和雕镂机,兼具简练性与最大通用性,投资估算最低便可知足需要。它普遍用于切割自然和分解石材和陶瓷

板材。
功效:
* 利用圆盘刀停止垂直、倾斜和程度切割
* 经由进程表面切割功效停止曲线切割
* 与钻头、铣刀和发掘轮等焦点东西共同利用
* 用于沉孔切割、表面加工和雕镂的增量式铣削
将这些功效与意大利 ESA 数控体系、数字伺服机电和 CAD CAM 画图软件相连系,可轻松完成各类切割支配。HKNC-500 还可装备真空支配器,用于主动挪动板材,以在切割进程中优化工件利用。

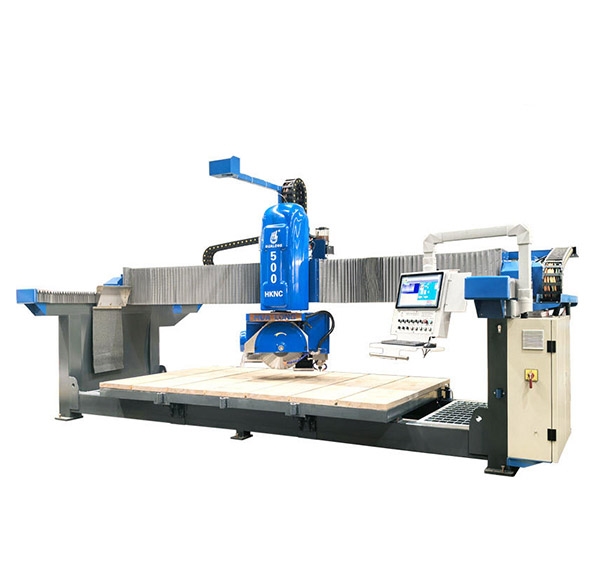

CNC Stone Machine


HKNC-500+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving

Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator♏ for the automatic moving of slabs to optimise workpiece usage during the ♐cutting process.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!

福建省华隆机器无限公司,福建华隆机器,华隆机器,华隆机器装备,石材机器厂,石材机器装备,石材切割机厂家,石材切割机哪家好,矿山机厂家,矿山机价钱,圆盘锯出产厂家,数控五轴桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石材切机,石材加工场装备,石材抛光机,石材抛光装备,石材加工中间,台面加工中间,水刀,水刀切割机,矿山开采装备,矿山圆盘锯,圆盘双刀锯,矿山机,矿山锯。石材桥锯,水刀切割机价钱,水刀切割机厂家,福建石材机器厂家,福建石材切割机厂家,福建石材装备厂家,石材切割哪家好,五轴桥锯,数控五轴桥锯,大理石桥锯切割机,花岗岩桥锯切割机,石英石桥锯切割机,
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet



TECHNICAL  DATA FOR HKNC-500

Diameter of saw blade
锯片直径
ø400-ø500
mm
Dimension of working platform
任务台尺寸
3300x2000
mm
Max. cutting length
最大切割长度
3300
mm
Max. cutting thickness
最大切割厚度
140
mm
Max. lifting stroke
最大起落路程
250
mm
Max. lifting weight by sunction cups
最大吸盘承重
200
kg
Power of main motor
主机电功率
11
kw
Power of cutter frame reciproctating motor
来去机电功率
2
kw
Power of crossbeam shifting motor
横梁机电功率
1.1
kw
Power of hydraulic station motor
液压站机电功率
2.2
kw
Power of lifting motor
起落机电功率
0.85
kw
Gross power
总功率
16
kw
Water consumption
耗水量
2
m3/h
Gross weight
总分量
5400
kg
Dimensions (L x W x H)
尺寸
5700x3260x2765
mm
