首要特色1. 主动跟从精度
及时边缘跟踪 | 单次成型合用于圆形/卵形/波浪形边缘 | ±0.3 毫米精度2. 卫星调速巨匠
0 - 6 转/分钟无级调速 | 随时调理 | 合适庞杂曲线3. 双形式矫捷性
全主动合用于圆形桌(直径 550 - 2000 毫米)| 半主动带气缸合用于定制形状4. 空间节流豪杰
占空中积 5 平方米 | 操纵职员培训 10 分钟 | 节能 40%5. 恒压巨匠
主动压力不变 | 边缘光滑度晋升 90%6. 模块化进级
附加迷(mi)你转盘(直径 110 - 500 毫米)| 斜边磨削套件
Auto-Follow Round Table Edge Grinder

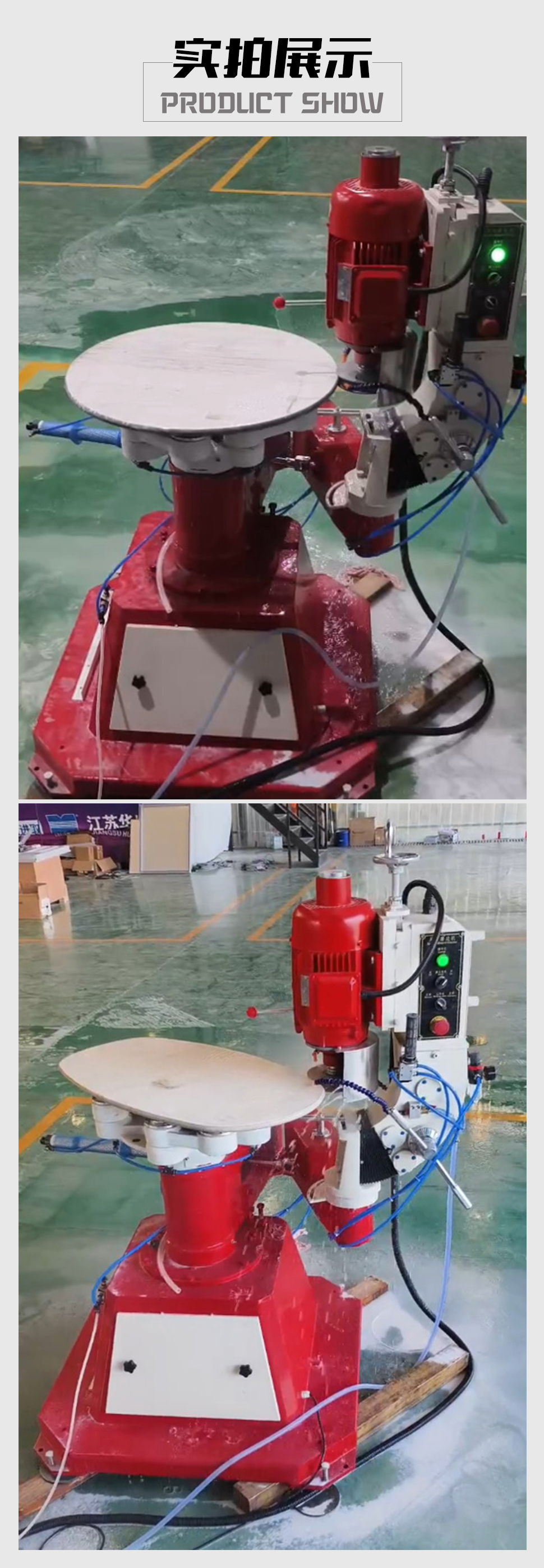

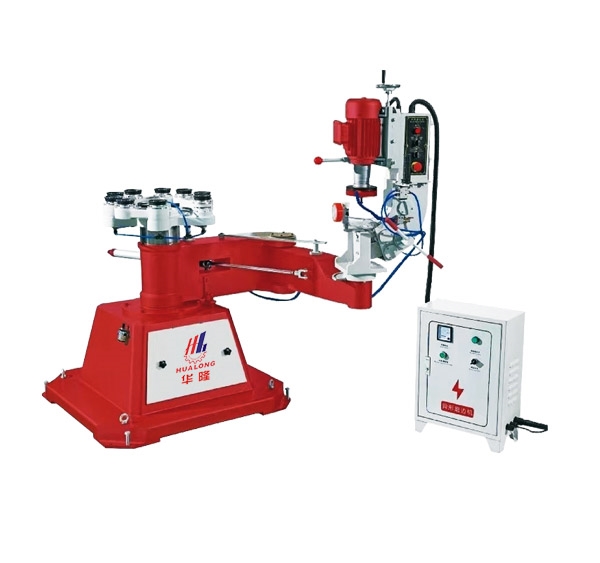

HLCM-1120 shape edging and beveling machine specializing in luxury round table & irregular countertops. With satellite rotary speed control + constant-pressure system, it masters curved slab edge processing of marble, granite, sintered stone, and glass. Whether you are edging/beveling complicated shapes, circles, ovals or matching a bevel on your arched pieces, the HLCM-1120 is your simple low cost solution.
Main Features
1. Auto-Follow Precision
Real-time edge tracking | Single-pass shaping for round/oval/wave edges | ±0.3mm accuracy
2. Satellite Speed Master
0-6rpm stepless speed control | On-the-fly adjustment | Perfect for intricate curves
3. Dual-Mode Flexibility
Full-auto for round tables (Φ550-2000mm) | Semi-auto with cylinder for custom shapes
4. Space-Saving Hero
5㎡ footprint | 10-min operator training | 40% energy saving
5. Constant-Pressure Genius
Auto force stabilization | 90% edge smoothness improvement
6. Modular Upgrade
Add-on mini turntable (Φ110-500mm) | Bevel edge grinding kit
| 称号 | NAME | 单元 | HLMB1121 |
| 加工直径 | Processing Diameter | mm | 110-2100 |
| 加工厚度 | Processing Thickness | mm | 10-100 |
| 斜边最大宽度 | Maximum Width of Bevel Edge | mm | 35 |
| 任务台转速 | Worktable Speed | r/min | 0.8-4 |
| 自力转盘转速 | Independent Turntable Speed | r/min | 1.2-6 |
| 电压、功率 | Voltage、Power | 380V、50Hz、5.5KW | |
| 机器分量 | Machine Weight | KG | 1000 |
| 形状尺寸 | 0verall dimension | mm | 1300*1700*2100 |
